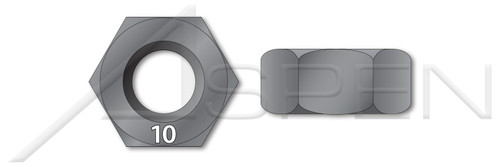

- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M30
- Thread Pitch: 3.5
- Diameter (Dimension): 30mm
- Thread Length (Nominal): 24mm
- Across Flats (Basic): 46mm
- Across Flats (Minimum): 45mm
- Across Flats (Maximum): 46mm
- Height (Basic): 24mm
- Height (Minimum): 22.7mm
- Height (Maximum): 24mm
- Washer Face Diameter (Minimum): 42.7mm
PRODUCT ATTRIBUTES- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10 Steel
- Material Processes: Heat Treated, Quenched and Tempered
- Coating: Uncoated
- Hardness Rating: Rockwell C26-C36
- Standards and Specifications: DIN 934 / ISO 4032
