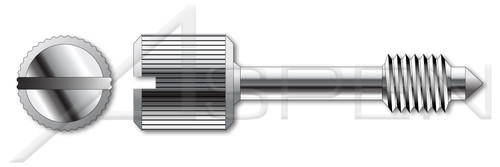

1/4"-20 X 1", Head Dia=1/2" Captive Panel Screws, Style 2, Knurled High Head, Slotted Drive, Stainless Steel, Made in U.S.A.

1/4"-20 X 1", Head Dia=1/2" Captive Panel Screws, Style 2, Knurled High Head, Slotted Drive, Stainless Steel, Made in U.S.A.

PART NUMBER:
FC043-1420X1X12
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): 1/4"
  • Thread Pitch: 20
  • Diameter (Dimension): 0.25"
  • Length (Nominal): 1"
  • Thread Length (Nominal): 0.313"
  • Thread Length (Minimum): 0.298"
  • Thread Length (Maximum): 0.313"
  • Head Diameter: 1/2"
  • Head Diameter (Minimum): 0.5"
  • Head Diameter (Maximum): 0.515"
  • Head Height, Overall: 0.563"
  • Head Height, Overall (Minimum): 0.553"
  • Head Height, Overall (Maximum): 0.573"
  • Shoulder Diameter: 0.175"
  • Shoulder Diameter (Minimum): 0.17"
  • Shoulder Diameter (Maximum): 0.18"
  • Shoulder Length: 0.5"
  • Shoulder Diameter (Minimum): 0.49"
  • Shoulder Diameter (Maximum): 0.51"
  • Point Length: 0.188"
  • Point Length (Minimum): 0.173"
  • Point Length (Maximum): 0.203"
  • Point Width: 0.175"
  • Point Width (Minimum): 0.165"
  • Point Width (Maximum): 0.175"
  • Point Angle (Degrees): 90
  • Slot Depth (Nominal): 0.093"
  • Slot Depth (Minimum): 0.093"
  • Slot Depth (Maximum): 0.103"
  • Slot Width (Nominal): 0.078"
  • Slot Width (Minimum): 0.078"
  • Slot Width (Maximum): 0.083"
PRODUCT ATTRIBUTES
  • Category: Captive Panel Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Style 2
  • Head Style: Knurled High Head
  • Head Style Detail: Chamfered Shoulder
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Point: Long Dog Cone Point
  • Material: Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
Shop by Material:
Stainless Steel
Thread Length (Minimum):
0.298"
Point Length (Maximum):
0.203"
Length (Nominal):
1"
Origin:
Made in U.S.A.
Thread Pitch:
20
Slot Width (Minimum):
0.078"
Head Diameter (Minimum):
0.5"
Head Diameter:
1/2"
Diameter (Nominal):
1/4"
Drive Style:
Slotted Drive
Thread Length (Maximum):
0.313"
Product Class:
Externally Threaded Fasteners
Form and Design:
Style 2
Head Height, Overall:
0.563"
Shoulder Diameter:
0.175"
Point:
Long Dog Cone Point
Shoulder Diameter (Maximum):
0.18"
Material:
Stainless Steel
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/FC043-1420X1X12.zip
Category:
Captive Panel Screws
System of Measurement:
Inch
Thread Length (Nominal):
0.313"
Slot Depth (Nominal):
0.093"
Point Width (Maximum):
0.175"
Slot Width (Maximum):
0.083"
Shop by System of Measurement:
Inch
Shoulder Diameter (Minimum):
0.49"
Point Length (Minimum):
0.173"
Order:
Machine Thread Fasteners
Point Angle (Degrees):
90
Brand:
Aspen Fasteners
Slot Depth (Minimum):
0.093"
Head Style:
Knurled High Head
Shop by Application:
Electronic Fasteners
Shoulder Length:
0.5"
Point Length:
0.188"
POS:
FC043-1420X1X12-00005,FC043-1420X1X12-00100,FC043-1420X1X12-00025,FC043-1420X1X12-00010,FC043-1420X1X12-00050
Slot Width (Nominal):
0.078"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product98/FC043-1420X1X12.PDF
Point Width (Minimum):
0.165"
Thread Direction:
Right-Hand Thread
Point Width:
0.175"
Head Height, Overall (Maximum):
0.573"
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/FC043-1420X1X12
Diameter (Dimension):
0.25"
Head Style Detail:
Chamfered Shoulder
Slot Depth (Maximum):
0.103"
Coating:
Uncoated
Head Height, Overall (Minimum):
0.553"
Shoulder Diameter (Maximum):
0.51"
Head Diameter (Maximum):
0.515"
Shoulder Diameter (Minimum):
0.17"
Print
  • Description
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): 1/4"
    • Thread Pitch: 20
    • Diameter (Dimension): 0.25"
    • Length (Nominal): 1"
    • Thread Length (Nominal): 0.313"
    • Thread Length (Minimum): 0.298"
    • Thread Length (Maximum): 0.313"
    • Head Diameter: 1/2"
    • Head Diameter (Minimum): 0.5"
    • Head Diameter (Maximum): 0.515"
    • Head Height, Overall: 0.563"
    • Head Height, Overall (Minimum): 0.553"
    • Head Height, Overall (Maximum): 0.573"
    • Shoulder Diameter: 0.175"
    • Shoulder Diameter (Minimum): 0.17"
    • Shoulder Diameter (Maximum): 0.18"
    • Shoulder Length: 0.5"
    • Shoulder Diameter (Minimum): 0.49"
    • Shoulder Diameter (Maximum): 0.51"
    • Point Length: 0.188"
    • Point Length (Minimum): 0.173"
    • Point Length (Maximum): 0.203"
    • Point Width: 0.175"
    • Point Width (Minimum): 0.165"
    • Point Width (Maximum): 0.175"
    • Point Angle (Degrees): 90
    • Slot Depth (Nominal): 0.093"
    • Slot Depth (Minimum): 0.093"
    • Slot Depth (Maximum): 0.103"
    • Slot Width (Nominal): 0.078"
    • Slot Width (Minimum): 0.078"
    • Slot Width (Maximum): 0.083"
    PRODUCT ATTRIBUTES
    • Category: Captive Panel Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Style 2
    • Head Style: Knurled High Head
    • Head Style Detail: Chamfered Shoulder
    • Drive Style: Slotted Drive
    • Thread Direction: Right-Hand Thread
    • Point: Long Dog Cone Point
    • Material: Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
  • 3D Product View

Contact us for availability information on part number FC043-1420X1X12. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
