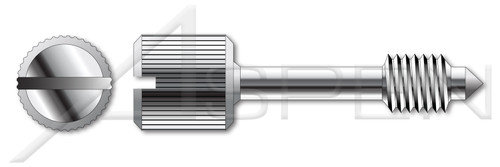

#8-32 X 13/16", Head Dia=5/16" Captive Panel Screws, Style 2, Knurled High Head, Slotted Drive, Stainless Steel, Made in U.S.A.

#8-32 X 13/16", Head Dia=5/16" Captive Panel Screws, Style 2, Knurled High Head, Slotted Drive, Stainless Steel, Made in U.S.A.

PART NUMBER:
FC043-832X1316X516
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): #8
  • Thread Pitch: 32
  • Diameter (Dimension): 0.1562"
  • Length (Nominal): 13/16"
  • Thread Length (Nominal): 0.219"
  • Thread Length (Minimum): 0.204"
  • Thread Length (Maximum): 0.219"
  • Head Diameter: 5/16"
  • Head Diameter (Minimum): 0.313"
  • Head Diameter (Maximum): 0.328"
  • Head Height, Overall: 0.313"
  • Head Height, Overall (Minimum): 0.303"
  • Head Height, Overall (Maximum): 0.323"
  • Shoulder Diameter: 0.12"
  • Shoulder Diameter (Minimum): 0.115"
  • Shoulder Diameter (Maximum): 0.125"
  • Shoulder Length: 0.5"
  • Shoulder Diameter (Minimum): 0.49"
  • Shoulder Diameter (Maximum): 0.51"
  • Point Length: 0.094"
  • Point Length (Minimum): 0.079"
  • Point Length (Maximum): 0.109"
  • Point Width: 0.12"
  • Point Width (Minimum): 0.11"
  • Point Width (Maximum): 0.12"
  • Point Angle (Degrees): 90
  • Slot Depth (Nominal): 0.078"
  • Slot Depth (Minimum): 0.078"
  • Slot Depth (Maximum): 0.088"
  • Slot Width (Nominal): 0.046"
  • Slot Width (Minimum): 0.046"
  • Slot Width (Maximum): 0.051"
PRODUCT ATTRIBUTES
  • Category: Captive Panel Screws
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Form and Design: Style 2
  • Head Style: Knurled High Head
  • Head Style Detail: Chamfered Shoulder
  • Drive Style: Slotted Drive
  • Thread Direction: Right-Hand Thread
  • Point: Long Dog Cone Point
  • Material: Stainless Steel
  • Coating: Uncoated
  • Origin: Made in U.S.A.
Brand:
Aspen Fasteners
Head Height, Overall (Minimum):
0.303"
Thread Direction:
Right-Hand Thread
Slot Width (Maximum):
0.051"
Shoulder Diameter (Minimum):
0.49"
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product98/FC043-832X1316X516.PDF
Shop by System of Measurement:
Inch
Diameter (Nominal):
#8
Drive Style:
Slotted Drive
Point Length:
0.094"
Head Height, Overall:
0.313"
POS:
FC043-832X1316X516-00015,FC043-832X1316X516-00030,FC043-832X1316X516-00075,FC043-832X1316X516-00300,FC043-832X1316X516-00150
Point Width (Maximum):
0.12"
Thread Pitch:
32
Diameter (Dimension):
0.1562"
Point:
Long Dog Cone Point
Head Style Detail:
Chamfered Shoulder
Slot Width (Nominal):
0.046"
Head Diameter:
5/16"
Form and Design:
Style 2
Slot Depth (Maximum):
0.088"
Point Length (Minimum):
0.079"
Category:
Captive Panel Screws
Material:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Slot Depth (Minimum):
0.078"
Point Width:
0.12"
Thread Length (Minimum):
0.204"
Shoulder Diameter:
0.12"
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/FC043-832X1316X516.zip
Shoulder Diameter (Maximum):
0.125"
Slot Depth (Nominal):
0.078"
Shop by Material:
Stainless Steel
Thread Length (Maximum):
0.219"
Slot Width (Minimum):
0.046"
System of Measurement:
Inch
Head Style:
Knurled High Head
Coating:
Uncoated
Head Height, Overall (Maximum):
0.323"
Head Diameter (Minimum):
0.313"
Origin:
Made in U.S.A.
Head Diameter (Maximum):
0.328"
Point Angle (Degrees):
90
Shoulder Diameter (Minimum):
0.115"
Order:
Machine Thread Fasteners
Shoulder Length:
0.5"
Point Length (Maximum):
0.109"
Thread Length (Nominal):
0.219"
Length (Nominal):
13/16"
Shoulder Diameter (Maximum):
0.51"
Point Width (Minimum):
0.11"
Shop by Application:
Electronic Fasteners
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/FC043-832X1316X516
Print
  • Description
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): #8
    • Thread Pitch: 32
    • Diameter (Dimension): 0.1562"
    • Length (Nominal): 13/16"
    • Thread Length (Nominal): 0.219"
    • Thread Length (Minimum): 0.204"
    • Thread Length (Maximum): 0.219"
    • Head Diameter: 5/16"
    • Head Diameter (Minimum): 0.313"
    • Head Diameter (Maximum): 0.328"
    • Head Height, Overall: 0.313"
    • Head Height, Overall (Minimum): 0.303"
    • Head Height, Overall (Maximum): 0.323"
    • Shoulder Diameter: 0.12"
    • Shoulder Diameter (Minimum): 0.115"
    • Shoulder Diameter (Maximum): 0.125"
    • Shoulder Length: 0.5"
    • Shoulder Diameter (Minimum): 0.49"
    • Shoulder Diameter (Maximum): 0.51"
    • Point Length: 0.094"
    • Point Length (Minimum): 0.079"
    • Point Length (Maximum): 0.109"
    • Point Width: 0.12"
    • Point Width (Minimum): 0.11"
    • Point Width (Maximum): 0.12"
    • Point Angle (Degrees): 90
    • Slot Depth (Nominal): 0.078"
    • Slot Depth (Minimum): 0.078"
    • Slot Depth (Maximum): 0.088"
    • Slot Width (Nominal): 0.046"
    • Slot Width (Minimum): 0.046"
    • Slot Width (Maximum): 0.051"
    PRODUCT ATTRIBUTES
    • Category: Captive Panel Screws
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Form and Design: Style 2
    • Head Style: Knurled High Head
    • Head Style Detail: Chamfered Shoulder
    • Drive Style: Slotted Drive
    • Thread Direction: Right-Hand Thread
    • Point: Long Dog Cone Point
    • Material: Stainless Steel
    • Coating: Uncoated
    • Origin: Made in U.S.A.
  • 3D Product View
