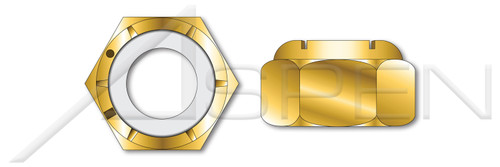

9/16"-12 Hex Nylon Insert Stop Lock Nuts, N1610 Series, Grade 8 Steel, Yellow Zinc

9/16"-12 Hex Nylon Insert Stop Lock Nuts, N1610 Series, Grade 8 Steel, Yellow Zinc

PART NUMBER:
NU076-91612
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
  • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
  • The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
  • Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
  • Diameter (Nominal): 9/16"
  • Thread Pitch: 12
  • Diameter (Dimension): 0.5625"
  • Thread Length: 0.469"
  • Across Flats (Basic): 7/8"
  • Across Flats (Minimum): 0.865"
  • Across Flats (Maximum): 0.877"
  • Height (Basic): 0.656"
  • Height (Minimum): 0.626"
  • Height (Maximum): 0.656"
  • Product Class: Internally Threaded Fasteners
  • Order: Lock Nuts
  • Category: Hex Nylon Insert Stop Lock Nuts
  • System of Measurement: Inch
  • Brand: Aspen Fasteners®
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Grade 8 Steel
  • Coating: Zinc Plated
  • Coating Color: Yellow
  • Standards and Specifications: N1610 Standard NE Series
Thread Length:
Full Thread
Category:
Hex Nylon Insert Stop Lock Nuts
Order:
Lock Nuts
Product Class:
Internally Threaded Fasteners
Shop by Material:
Steel
Shop by System of Measurement:
Inch
Across Flats (Basic):
7/8"
Brand:
Aspen Fasteners
Drive Style:
External Hex Drive
Standards and Specifications:
N1610 Standard NE Series
Coating Color:
Yellow
Across Flats (Minimum):
0.865"
Across Flats (Maximum):
0.877"
Height (Basic):
0.656"
Height (Minimum):
0.626"
Height (Maximum):
0.656"
Thread Length:
0.469"
Thread Pitch:
12
Diameter (Dimension):
0.5625"
Material:
Steel
Material Grade:
Grade 8 Steel
Coating:
Zinc Plated
Diameter (Nominal):
9/16"
Thread Direction:
Right-Hand Thread
System of Measurement:
Inch
POS:
NU076-91612-000050,NU076-91612-000100
  • Description
    • Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
    • The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
    • The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
    • Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
    • Diameter (Nominal): 9/16"
    • Thread Pitch: 12
    • Diameter (Dimension): 0.5625"
    • Thread Length: 0.469"
    • Across Flats (Basic): 7/8"
    • Across Flats (Minimum): 0.865"
    • Across Flats (Maximum): 0.877"
    • Height (Basic): 0.656"
    • Height (Minimum): 0.626"
    • Height (Maximum): 0.656"
    • Product Class: Internally Threaded Fasteners
    • Order: Lock Nuts
    • Category: Hex Nylon Insert Stop Lock Nuts
    • System of Measurement: Inch
    • Brand: Aspen Fasteners®
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Grade 8 Steel
    • Coating: Zinc Plated
    • Coating Color: Yellow
    • Standards and Specifications: N1610 Standard NE Series

Contact us for availability information on part number NU076-91612. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
