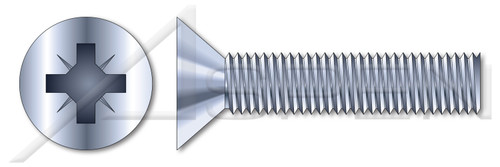

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M1.6
- Thread Pitch: 0.35
- Diameter (Dimension): 1.6mm
- Length (Nominal): 6mm
- Thread Length (Nominal): 5.04mm
- Drive Recess Size: #0
- Drive Recess Width: 1.8mm
- Drive Recess Depth (Minimum): 0.89mm
- Drive Recess Depth (Maximum): 1.14mm
- Head Diameter: 3mm
- Head Diameter (Minimum): 2.75mm
- Head Diameter (Maximum): 3mm
- Head Height, Overall: 0.96mm
PRODUCT ATTRIBUTES- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Pozidriv Type Z
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
692559758299
- Brand:
- Aspen Fasteners
- Category:
- Machine Screws
- Coating:
- Zinc Plated
- Coating Color:
- Clear
- Diameter (Dimension):
- 1.6mm
- Diameter (Nominal):
- M1.6
- Drive Detail:
- Pozidriv Type Z
- Drive Recess Size:
- #0
- Drive Recess Width:
- 1.8mm
- Drive Style:
- Cruciform Recess Drive
- Head Diameter:
- 3mm
- Head Diameter (Maximum):
- 3mm
- Head Diameter (Minimum):
- 2.75mm
- Head Height, Overall:
- 0.96mm
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 90 Degree Countersink
- Length (Nominal):
- 6mm
- Material:
- Steel
- Material Grade:
- Class 4.8 Steel
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 965 / ISO 7046
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Thread Length (Nominal):
- 5.04mm
- Thread Pitch:
- 0.35
