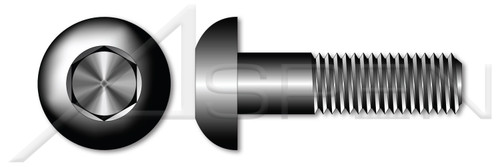

- Superior quality parts by Holo-Krome, made in the U.S.A.
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Button head screws have a wider bearing surface and maintain a low head profile.
- An internal hex socket drive is also known as an Allen drive.
- Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M12
- Thread Pitch: 1.75
- Diameter (Dimension): 12mm
- Diameter (Minimum): 11.73mm
- Diameter (Maximum): 12mm
- Length (Nominal): 16mm
- Thread Length (Nominal): 16mm
- Drive Size: 8mm
- Head Diameter: 21mm
- Head Diameter (Minimum): 20.48mm
- Head Diameter (Maximum): 21mm
- Head Height, Overall: 6.6mm
- Head Height, Overall (Minimum): 6.24mm
- Head Height, Overall (Maximum): 6.6mm
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Holo-Krome®
- Head Style: Button Head
- Drive Style: Hex Socket Drive
- Threading: Thread Class ANSI B1.13M
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 12.9 Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
- Standards and Specifications: ISO 7380-1
Product UPC Code:
692559871035
