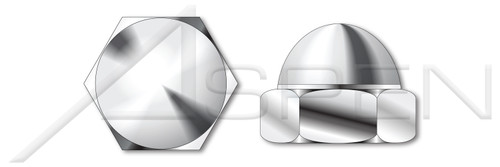

M14-2.0 DIN 1587, Metric, Acorn Cap Dome Nuts, A2 Stainless Steel

PART NUMBER:
ME277-1420
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Nuts with a domed end on one side are also known as crown nuts, blind nuts, cap nuts or dome nuts.
  • Manufactured from two pieces, the nut and the cap, and then pressed together.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M14
  • Thread Pitch: 2.0
  • Diameter (Dimension): 14mm
  • Thread Length (Nominal): 11mm
  • Outside Diameter (Nominal): 20mm
  • Across Flats (Basic): 22mm
  • Height (Basic): 25mm
PRODUCT ATTRIBUTES
  • Category: Acorn Cap Dome Nuts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: High Type
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Material Processes: Two-Piece Assembly
  • Coating: Uncoated
  • Standards and Specifications: DIN 1587
Material Processes:
Two-Piece Assembly
Shop by Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Form and Design:
High Type
Thread Length:
Full Thread
Product Class:
Internally Threaded Fasteners
Across Flats (Basic):
22mm
POS:
ME277-1420-00004,ME277-1420X25X22-000100
Brand:
Aspen Fasteners
Thread Pitch:
2.0
Order:
Nuts
Diameter (Dimension):
14mm
Material:
Stainless Steel
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME277-1420.zip
System of Measurement:
Metric
Coating:
Uncoated
Drive Style:
External Hex Drive
Diameter (Nominal):
M14
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product93/ME277-1420.PDF
Height (Basic):
25mm
Shop by System of Measurement:
Metric
Outside Diameter (Nominal):
20mm
Standards and Specifications:
DIN 1587
Material Grade:
A2 Stainless Steel
Thread Length (Nominal):
11mm
Category:
Acorn Cap Dome Nuts
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME277-1420
  • Description
    • Nuts with a domed end on one side are also known as crown nuts, blind nuts, cap nuts or dome nuts.
    • Manufactured from two pieces, the nut and the cap, and then pressed together.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M14
    • Thread Pitch: 2.0
    • Diameter (Dimension): 14mm
    • Thread Length (Nominal): 11mm
    • Outside Diameter (Nominal): 20mm
    • Across Flats (Basic): 22mm
    • Height (Basic): 25mm
    PRODUCT ATTRIBUTES
    • Category: Acorn Cap Dome Nuts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: High Type
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Material Processes: Two-Piece Assembly
    • Coating: Uncoated
    • Standards and Specifications: DIN 1587
  • 3D Product View

Contact us for availability information on part number ME277-1420. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
