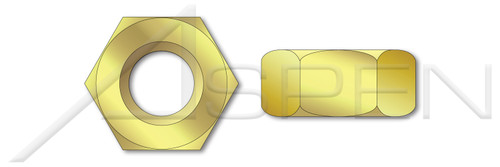

- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M2
- Thread Pitch: 0.4
- Diameter (Dimension): 2mm
- Thread Length (Nominal): 1.6mm
- Across Flats (Basic): 4mm
- Across Flats (Minimum): 3.82mm
- Across Flats (Maximum): 4mm
- Height (Basic): 1.6mm
- Height (Minimum): 1.35mm
- Height (Maximum): 1.6mm
- Washer Face Diameter (Minimum): 3.2mm
PRODUCT ATTRIBUTES- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Standards and Specifications: DIN 934 / ISO 4032
Product UPC Code:
698435199354
- Thread Length:
- Full Thread
- Drive Style:
- External Hex Drive
- Across Flats (Maximum):
- 4mm
- POS:
- ME177-204-01500
- Height (Basic):
- 1.6mm
- Material:
- Brass
- Order:
- Nuts
- Category:
- Hex Finished Nuts
- Standards and Specifications:
- DIN 934 / ISO 4032
- Across Flats (Minimum):
- 3.82mm
- Brand:
- Aspen Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME177-204
- Shop by System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Pitch:
- 0.4
- Thread Length (Nominal):
- 1.6mm
- Shop by Material:
- Brass
- Height (Maximum):
- 1.6mm
- Coating:
- Uncoated
- Diameter (Nominal):
- M2
- Height (Minimum):
- 1.35mm
- Diameter (Dimension):
- 2mm
- System of Measurement:
- Metric
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product89/ME177-204.PDF
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME177-204.zip
- Product Class:
- Internally Threaded Fasteners
- Across Flats (Basic):
- 4mm
