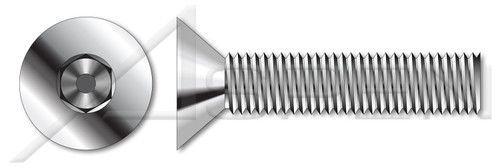

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flat countersunk head screws sit flush with the surface of the material they are inserted into.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M2
- Thread Pitch: 0.4
- Diameter (Dimension): 2mm
- Length (Nominal): 10mm
- Thread Length (Nominal): 8.8mm
- Drive Recess Size: 1.25mm
- Head Diameter: 4mm
- Head Height, Overall: 1.2mm
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 7991 / ISO 10642
Product UPC Code:
698435881105
- Drive Recess Size:
- 1.25mm
- Category:
- Socket Head Cap Screws
- Head Height, Overall:
- 1.2mm
- Brand:
- Aspen Fasteners
- Product Class:
- Externally Threaded Fasteners
- Drive Style:
- Hex Socket Drive
- Thread Pitch:
- 0.4
- Material Grade:
- A4 Stainless Steel
- Thread Length:
- Full Thread
- POS:
- ME300-204X10-001000
- Shop by Application:
- Socket Products
- Thread Direction:
- Right-Hand Thread
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product87/ME300-204X10.PDF
- System of Measurement:
- Metric
- Head Style:
- Flat Countersunk Head
- Thread Length (Nominal):
- 8.8mm
- Shop by Material:
- Stainless Steel
- Head Style Detail:
- 90 Degree Countersink
- Diameter (Dimension):
- 2mm
- Diameter (Nominal):
- M2
- Coating:
- Uncoated
- Material:
- Stainless Steel
- Head Diameter:
- 4mm
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- Shop by System of Measurement:
- Metric
- Length (Nominal):
- 10mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME300-204X10
- Standards and Specifications:
- DIN 7991 / ISO 10642
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME300-204X10.zip
