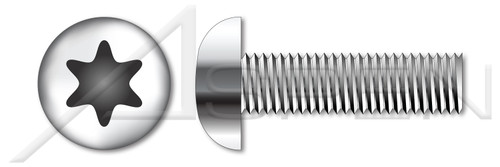

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Button head cap screws have a wider bearing surface and maintain a low head profile.
- A 6-lobe recess is also known as a hexalobular internal drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M3
- Thread Pitch: 0.5
- Diameter (Dimension): 3mm
- Diameter (Minimum): 2.86mm
- Diameter (Maximum): 3mm
- Length (Nominal): 22mm
- Thread Length: 22mm
- Recess Size: T10
- Head Diameter: 5.7mm
- Head Diameter (Minimum): 5.4mm
- Head Diameter (Maximum): 5.7mm
- Head Height, Overall: 1.65mm
- Head Height, Overall (Minimum): 1.4mm
- Head Height, Overall (Maximum): 1.65mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Button Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ISO 7380-1
Product UPC Code:
698435883253
- Drive Detail:
- Torx(r) Generic Alternative
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Socket Head Cap Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Head Style:
- Button Head
- Drive Style:
- 6Lobe Drive
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- ISO 7380-1
- Diameter (Nominal):
- M3
- Diameter (Dimension):
- 3mm
- Diameter (Minimum):
- 2.86mm
- Diameter (Maximum):
- 3mm
- Thread Pitch:
- 0.5
- Length (Nominal):
- 22mm
- Thread Length:
- 22mm
- Recess Size:
- T10
- Head Diameter:
- 5.7mm
- Head Diameter (Minimum):
- 5.4mm
- Head Diameter (Maximum):
- 5.7mm
- Head Height, Overall:
- 1.65mm
- Head Height, Overall (Minimum):
- 1.4mm
- Head Height, Overall (Maximum):
- 1.65mm
