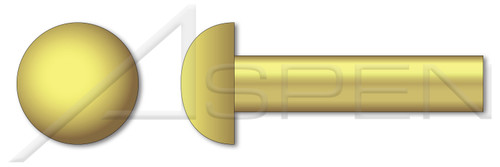

M4 X 30mm DIN 660 / ISO 1051, Metric, Solid Rivets, Round Head, Brass

PART NUMBER:
ME068-4X30-000500
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
  • Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M4
  • Diameter (Dimension): 4mm
  • Diameter (Minimum): 3.87mm
  • Diameter (Maximum): 4.1mm
  • Length (Nominal): 30mm
  • Unthreaded Shank Length: 30mm
  • Head Diameter: 7mm
  • Head Diameter (Minimum): 6.42mm
  • Head Diameter (Maximum): 7mm
  • Head Height, Overall: 2.4mm
  • Head Height, Overall (Minimum): 2.275mm
  • Head Height, Overall (Maximum): 2.525mm
PRODUCT ATTRIBUTES
  • Category: Solid Rivets
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Round Head
  • Material: Brass
  • Material Grade: Standard Commercial Grade
  • Coating: Uncoated
  • Standards and Specifications: DIN 660 / ISO 1051
Product UPC Code:
698435906341
System of Measurement:
Metric
Standards and Specifications:
DIN 660 / ISO 1051
Category:
Solid Rivets
Diameter (Nominal):
M4
Coating:
Uncoated
Head Diameter (Minimum):
6.42mm
Head Diameter (Maximum):
7mm
Head Height, Overall:
2.4mm
Shop by System of Measurement:
Metric
Head Style:
Round Head
Material:
Brass
Length (Nominal):
30mm
Diameter (Maximum):
4.1mm
Diameter (Dimension):
4mm
Material Grade:
Standard Commercial Grade
Shop by Material:
Brass
Head Height, Overall (Maximum):
2.525mm
Brand:
Aspen Fasteners
Head Height, Overall (Minimum):
2.275mm
Head Diameter:
7mm
Order:
Rivets
Product Class:
Rivets
Diameter (Minimum):
3.87mm
  • Description
    • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
    • Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M4
    • Diameter (Dimension): 4mm
    • Diameter (Minimum): 3.87mm
    • Diameter (Maximum): 4.1mm
    • Length (Nominal): 30mm
    • Unthreaded Shank Length: 30mm
    • Head Diameter: 7mm
    • Head Diameter (Minimum): 6.42mm
    • Head Diameter (Maximum): 7mm
    • Head Height, Overall: 2.4mm
    • Head Height, Overall (Minimum): 2.275mm
    • Head Height, Overall (Maximum): 2.525mm
    PRODUCT ATTRIBUTES
    • Category: Solid Rivets
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Round Head
    • Material: Brass
    • Material Grade: Standard Commercial Grade
    • Coating: Uncoated
    • Standards and Specifications: DIN 660 / ISO 1051
    Product UPC Code:
    698435906341
