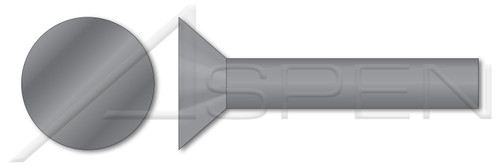

M4 X 50mm DIN 661 / ISO 1051, Metric, Solid Rivets, Flat Countersunk Head, Steel

M4 X 50mm DIN 661 / ISO 1051, Metric, Solid Rivets, Flat Countersunk Head, Steel

PART NUMBER:
ME392-4X50
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M4
  • Diameter (Dimension): 4mm
  • Diameter (Minimum): 3.87mm
  • Diameter (Maximum): 4.1mm
  • Length (Nominal): 50mm
  • Unthreaded Shank Length: 48mm
  • Head Diameter: 7mm
  • Head Diameter (Minimum): 6.42mm
  • Head Diameter (Maximum): 7mm
  • Head Height, Overall: 2mm
PRODUCT ATTRIBUTES
  • Category: Solid Rivets
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 75 Degree Countersink
  • Material: Steel
  • Material Grade: Low Carbon Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 661 / ISO 1051
Head Height, Overall:
2mm
Category:
Solid Rivets
Material Grade:
Low Carbon Steel
Coating:
Uncoated
Head Style:
Flat Countersunk Head
Diameter (Maximum):
4.1mm
Shop by System of Measurement:
Metric
Length (Nominal):
50mm
Diameter (Dimension):
4mm
System of Measurement:
Metric
Standards and Specifications:
DIN 661 / ISO 1051
Head Diameter (Maximum):
7mm
Brand:
Aspen Fasteners
Product Class:
Rivets
Material:
Steel
Diameter (Nominal):
M4
Diameter (Minimum):
3.87mm
Head Style Detail:
75 Degree Countersink
Order:
Rivets
Shop by Material:
Steel
Head Diameter:
7mm
Head Diameter (Minimum):
6.42mm
  • Description
    • Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M4
    • Diameter (Dimension): 4mm
    • Diameter (Minimum): 3.87mm
    • Diameter (Maximum): 4.1mm
    • Length (Nominal): 50mm
    • Unthreaded Shank Length: 48mm
    • Head Diameter: 7mm
    • Head Diameter (Minimum): 6.42mm
    • Head Diameter (Maximum): 7mm
    • Head Height, Overall: 2mm
    PRODUCT ATTRIBUTES
    • Category: Solid Rivets
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 75 Degree Countersink
    • Material: Steel
    • Material Grade: Low Carbon Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 661 / ISO 1051
