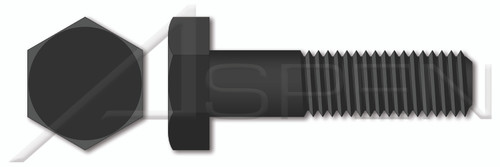

M5-0.8 X 55mm DIN 931, Metric, Hex Head Cap Screws Bolts, Part Thread, Nylon 6/6, Black

M5-0.8 X 55mm DIN 931, Metric, Hex Head Cap Screws Bolts, Part Thread, Nylon 6/6, Black

PART NUMBER:
TP001-508X55-000001
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Length (Nominal): 55mm
  • Thread Length (Nominal): 16mm
  • Across Flats (Basic): 8mm
  • Head Height, Overall: 3.5mm
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Hex Head
  • Drive Style: External Hex Drive
  • Pitch: Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Thermoplastic
  • Material Grade: Nylon 6/6
  • Coating: Uncoated
  • Coating Color: Black
  • Standards and Specifications: DIN 931
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product101/TP001-508X55.PDF
Point:
Chamfered Point
Thread Length:
Part Thread
Material:
Thermoplastic
Thread Direction:
Right-Hand Thread
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/TP001-508X55.zip
Standards and Specifications:
DIN 931
Category:
Cap Screws
Material Grade:
Nylon 6/6
Shop by Material:
Thermoplastics
Length (Nominal):
55mm
Shop by System of Measurement:
Metric
Across Flats (Basic):
8mm
Head Height, Overall:
3.5mm
Product Class:
Externally Threaded Fasteners
Pitch:
Coarse Thread
Diameter (Nominal):
M5
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/TP001-508X55
Coating:
Uncoated
Order:
Machine Thread Fasteners
Head Style:
Hex Head
Thread Pitch:
0.8
POA:
TP001-508X55-000001
System of Measurement:
Metric
Coating Color:
Black
Drive Style:
External Hex Drive
Brand:
Aspen Fasteners
Diameter (Dimension):
5mm
Thread Length (Nominal):
16mm
Print
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Length (Nominal): 55mm
    • Thread Length (Nominal): 16mm
    • Across Flats (Basic): 8mm
    • Head Height, Overall: 3.5mm
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Hex Head
    • Drive Style: External Hex Drive
    • Pitch: Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Thermoplastic
    • Material Grade: Nylon 6/6
    • Coating: Uncoated
    • Coating Color: Black
    • Standards and Specifications: DIN 931
  • 3D Product View

Contact us for availability information on part number TP001-508X55-000001. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
