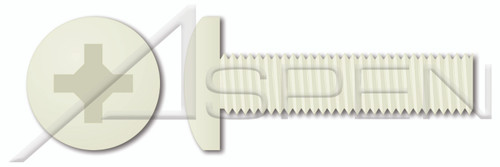

M5-0.8 X 6mm DIN 7985A / ISO 7045, Metric, Machine Screws, Pan Phillips Drive, Polyamide

M5-0.8 X 6mm DIN 7985A / ISO 7045, Metric, Machine Screws, Pan Phillips Drive, Polyamide

PART NUMBER:
TP066-508X6-000001
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Pan head screws are also known as raised cheese head screws.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Length (Nominal): 6mm
  • Thread Length (Nominal): 6mm
  • Drive Recess Size: #2
  • Head Diameter: 10mm
  • Head Height, Overall: 3.8mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Thermoplastic
  • Material Grade: Polyamide
  • Coating: Uncoated
  • Coating Color: Natural
  • Standards and Specifications: DIN 7985A / ISO 7045
Material:
Thermoplastic
Thread Length:
Full Thread
Brand:
Aspen Fasteners
Thread Direction:
Right-Hand Thread
Length (Nominal):
6mm
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/TP066-508X6
Drive Style:
Cruciform Recess Drive
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product101/TP066-508X6.PDF
Product Class:
Externally Threaded Fasteners
Head Diameter:
10mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/TP066-508X6.zip
Shop by System of Measurement:
Metric
System of Measurement:
Metric
Drive Detail:
Phillips Type H
Thread Length (Nominal):
6mm
Material Grade:
Polyamide
Diameter (Nominal):
M5
Category:
Machine Screws
Diameter (Dimension):
5mm
Head Height, Overall:
3.8mm
Drive Recess Size:
#2
Coating Color:
Natural
Coating:
Uncoated
Thread Pitch:
0.8
Head Style:
Pan Head
Standards and Specifications:
DIN 7985A / ISO 7045
Shop by Material:
Thermoplastics
Order:
Machine Thread Fasteners
POA:
TP066-508X6-000001
Print
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Pan head screws are also known as raised cheese head screws.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Length (Nominal): 6mm
    • Thread Length (Nominal): 6mm
    • Drive Recess Size: #2
    • Head Diameter: 10mm
    • Head Height, Overall: 3.8mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Thermoplastic
    • Material Grade: Polyamide
    • Coating: Uncoated
    • Coating Color: Natural
    • Standards and Specifications: DIN 7985A / ISO 7045
  • 3D Product View

Contact us for availability information on part number TP066-508X6-000001. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
