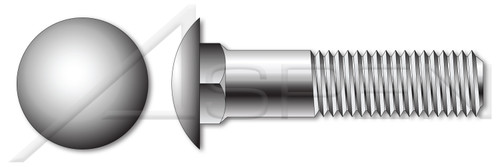

- Also known as coach bolts, are typically used to fasten metal to wood.
- The square neck under the head locks the bolt into place.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Can be used as a security fastener. The smooth head prevents unfastening from the head side.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Diameter (Minimum): 5.52mm
- Diameter (Maximum): 6mm
- Length (Nominal): 130mm
- Thread Length (Nominal): 24mm
- Neck Width: 6.48mm
- Neck Height: 4.6mm
- Head Diameter (Minimum): 15.45mm
- Head Diameter (Maximum): 16.55mm
- Head Height, Overall (Minimum): 3.12mm
- Head Height, Overall (Maximum): 3.88mm
PRODUCT ATTRIBUTES- Category: Carriage Bolts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Round Head
- Head Style Detail: Square Neck
- Thread Length: Standard Thread Length
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 603 / ISO 8677
Product UPC Code:
692559992389
- Brand:
- Aspen Fasteners
- Category:
- Carriage Bolts
- Coating:
- Uncoated
- Diameter (Dimension):
- 6mm
- Diameter (Maximum):
- 6mm
- Diameter (Minimum):
- 5.52mm
- Diameter (Nominal):
- M6
- Head Diameter (Maximum):
- 16.55mm
- Head Diameter (Minimum):
- 15.45mm
- Head Height, Overall (Maximum):
- 3.88mm
- Head Height, Overall (Minimum):
- 3.12mm
- Head Style:
- Round Head
- Head Style Detail:
- Square Neck
- Length (Nominal):
- 130mm
- Material:
- Stainless Steel
- Material Grade:
- A4 Stainless Steel
- Neck Height:
- 4.6mm
- Neck Width:
- 6.48mm
- Order:
- Machine Thread Fasteners
- POS:
- ME497-610X130-000100
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 603 / ISO 8677
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Standard Thread Length
- Thread Length (Nominal):
- 24mm
- Thread Pitch:
- 1.0
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME497-610X130.zip
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME497-610X130
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product86/ME497-610X130.PDF
