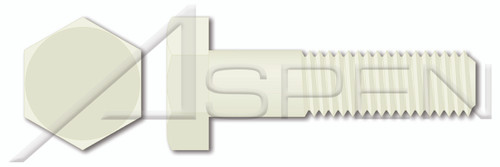

M6-1.0 X 55mm DIN 931, Metric, Hex Head Cap Screws Bolts, Part Thread, Nylon 6/6

M6-1.0 X 55mm DIN 931, Metric, Hex Head Cap Screws Bolts, Part Thread, Nylon 6/6

PART NUMBER:
TP002-610X55-000001
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
  • The chamfered point improves engagement with a nut or pre-tapped hole.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M6
  • Thread Pitch: 1.0
  • Diameter (Dimension): 6mm
  • Length (Nominal): 55mm
  • Thread Length (Nominal): 18mm
  • Across Flats (Basic): 10mm
  • Head Height, Overall: 4mm
PRODUCT ATTRIBUTES
  • Category: Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Hex Head
  • Drive Style: External Hex Drive
  • Pitch: Coarse Thread
  • Thread Length: Part Thread
  • Thread Direction: Right-Hand Thread
  • Point: Chamfered Point
  • Material: Thermoplastic
  • Material Grade: Nylon 6/6
  • Coating: Uncoated
  • Coating Color: Natural
  • Standards and Specifications: DIN 931
Material:
Thermoplastic
Length (Nominal):
55mm
Head Style:
Hex Head
Across Flats (Basic):
10mm
System of Measurement:
Metric
Pitch:
Coarse Thread
Thread Pitch:
1.0
Brand:
Aspen Fasteners
POA:
TP002-610X55-000001
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/TP002-610X55
Thread Length (Nominal):
18mm
Thread Direction:
Right-Hand Thread
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/TP002-610X55.zip
Product Class:
Externally Threaded Fasteners
Drive Style:
External Hex Drive
Head Height, Overall:
4mm
Point:
Chamfered Point
Thread Length:
Part Thread
Coating Color:
Natural
Material Grade:
Nylon 6/6
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product101/TP002-610X55.PDF
Standards and Specifications:
DIN 931
Diameter (Nominal):
M6
Shop by System of Measurement:
Metric
Shop by Material:
Thermoplastics
Coating:
Uncoated
Diameter (Dimension):
6mm
Order:
Machine Thread Fasteners
Category:
Cap Screws
Print
  • Description
    • Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
    • The chamfered point improves engagement with a nut or pre-tapped hole.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M6
    • Thread Pitch: 1.0
    • Diameter (Dimension): 6mm
    • Length (Nominal): 55mm
    • Thread Length (Nominal): 18mm
    • Across Flats (Basic): 10mm
    • Head Height, Overall: 4mm
    PRODUCT ATTRIBUTES
    • Category: Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Hex Head
    • Drive Style: External Hex Drive
    • Pitch: Coarse Thread
    • Thread Length: Part Thread
    • Thread Direction: Right-Hand Thread
    • Point: Chamfered Point
    • Material: Thermoplastic
    • Material Grade: Nylon 6/6
    • Coating: Uncoated
    • Coating Color: Natural
    • Standards and Specifications: DIN 931
  • 3D Product View

Contact us for availability information on part number TP002-610X55-000001. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
